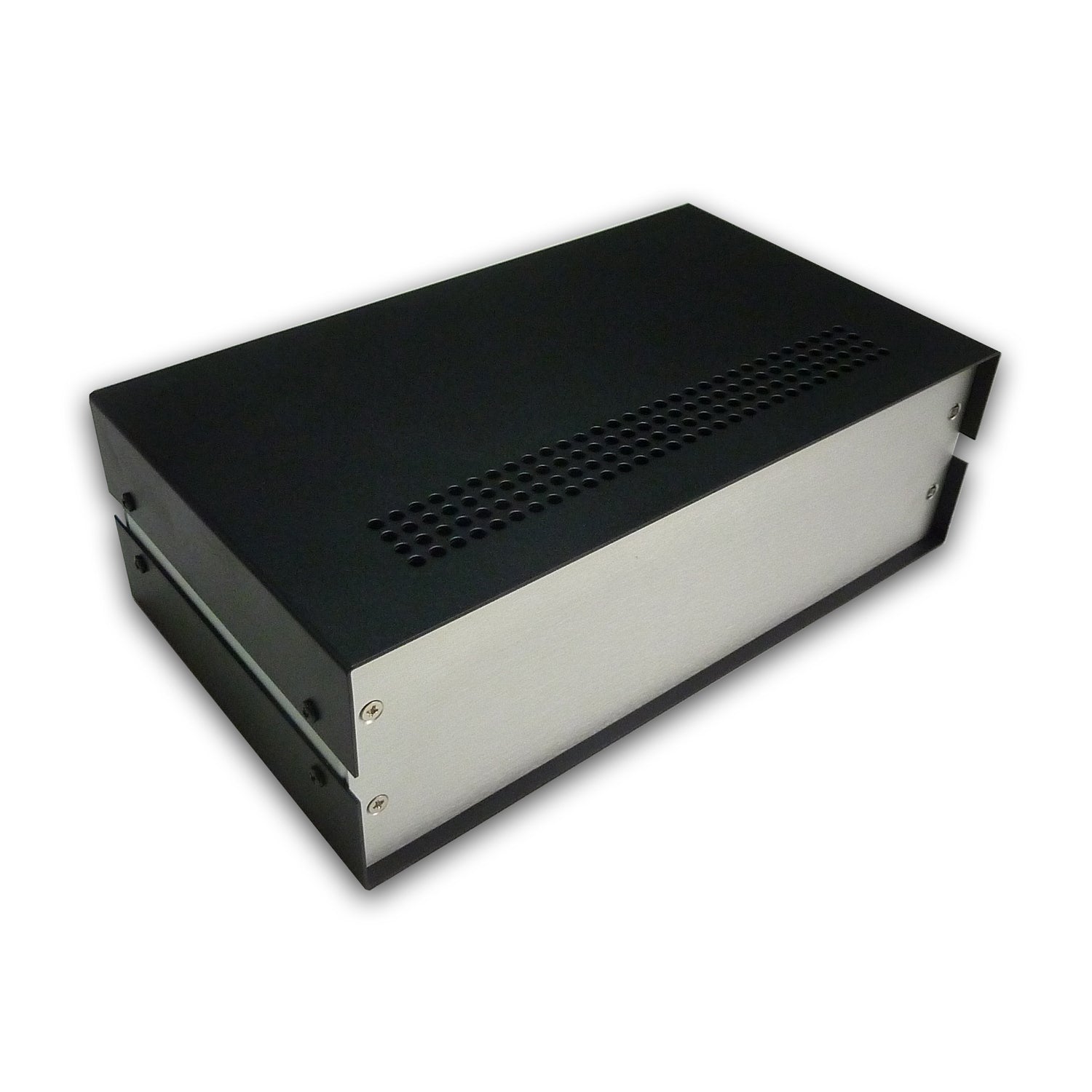

SV1063 Full Aluminum Project Enclosure

The SUNeMALL SV1063 is a premium, factory-direct multi-purpose electronic project enclosure engineered specifically for hardware developers, DIY electronics hobbyists, and laboratory test gear manufacturers. Utilizing a highly functional dual U-shaped panel system, the SV1063 provides maximum structural support and rigidity at an economical factory-direct price point.

📐 Technical Specifications:

• Model Number: SV1063
• Enclosure Style: Dual U-Shaped Multi-Piece Configuration
• Body Dimensions: Width 10" (254mm) x Height 3.2" (82mm)
• Depth Profile: 5.8" (147mm)
• Internal Size: width 9.9"/ 252mm, height 3.1"/ 80mm, depth 5.1"/ 130mm
• Material Composition: Full Premium Industrial Grade Aluminum
• Weight: Approx. 1.3 lbs / 561g
• Color & Finish: Natural Raw Aluminum / Factory Unfinished Canvas with a Painted Black Base
• Inclusions: Includes complete flush-mount machine assembly hardware screws for side panel flush mounting and 4 non-slip feet

⚙️ Key Product Features:

• U-Shaped Removable System: Consists of two premium aluminum nested panels (base and cover). The pieces assemble securely via side-panel machine screws and are completely removable for easy bench servicing, fast component access, and circuit wiring tweaks.
• Clean CNC & Machine Properties: The high-quality aluminum panels arrive completely blank and un-drilled, providing a smooth surface that can be cleanly drilled, punched, or milled locally without fracturing or splitting.
• Expanded Wide Layout: The generous 10-inch width workspace provides ample visual and structural freedom for long PCB rails, heavy transformers, dense toggle configurations, and digital module displays.

🛠️ Need Factory Pre-Drilling or Silk-Screening?

Planning a commercial production run for your hardware line? We can save you valuable assembly labor. We offer in-house factory CNC punch milling for your custom connector ports, specialized powder coating, and high-resolution laser engraving or silk-screen branding. Head to our Custom CNC & Laser Quotes page to upload your design blueprints for a direct factory estimate.
