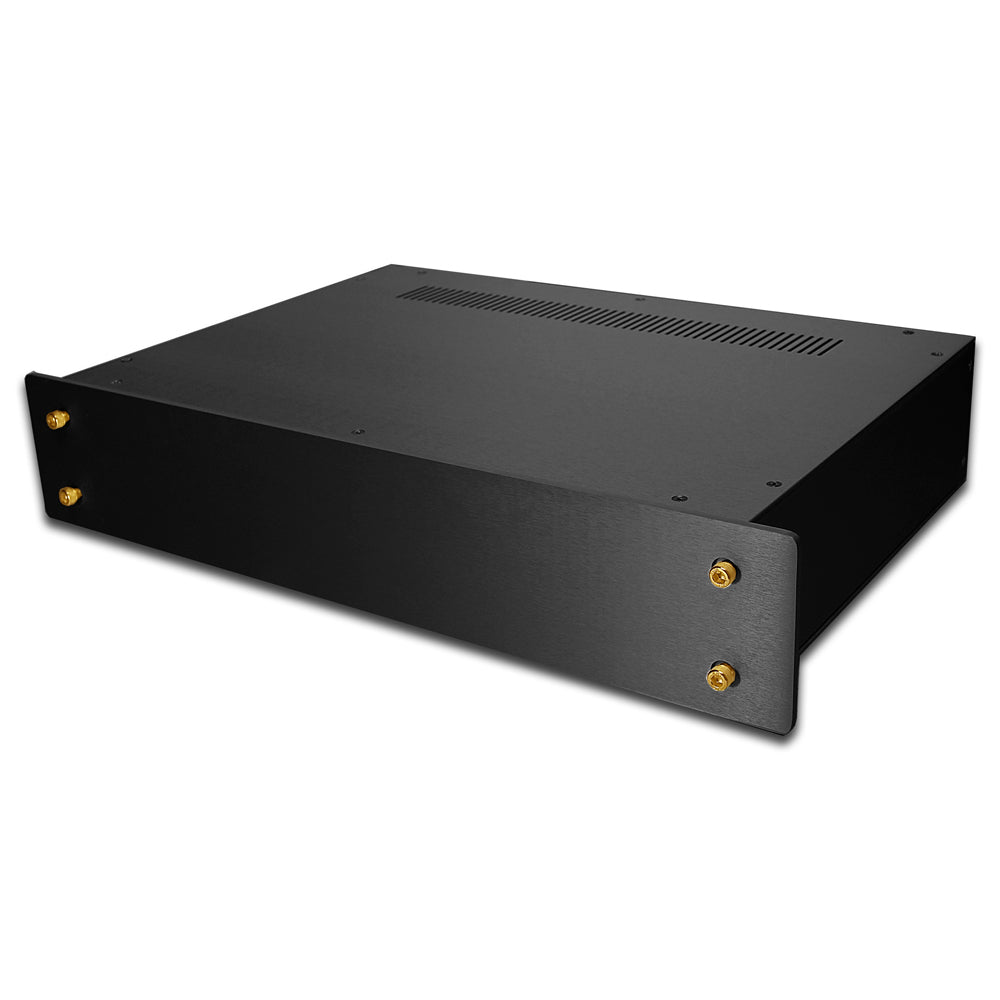

SL1924 Full Aluminum Alloy Desktop Audio Chassis

The SUNeMALL SL1924 is a premium, factory-direct custom 19-inch wide full aluminium alloy desktop project enclosure engineered specifically for high-end Hi-Fi pre-amplifiers, integrated power amplifiers, and custom audio processors requiring deep vertical internal space. Constructed entirely from premium, non-ferrous aluminium panels, the SL1924 delivers an elite architectural aesthetic alongside exceptional structural strength at an economical factory-direct price point.

🎨 Triple Finish Color Options Available:

Tailor your hardware project to match your existing audio stack or workbench design identity. This model features an ultra-thick front panel available in three distinct luxury anodised finishes:

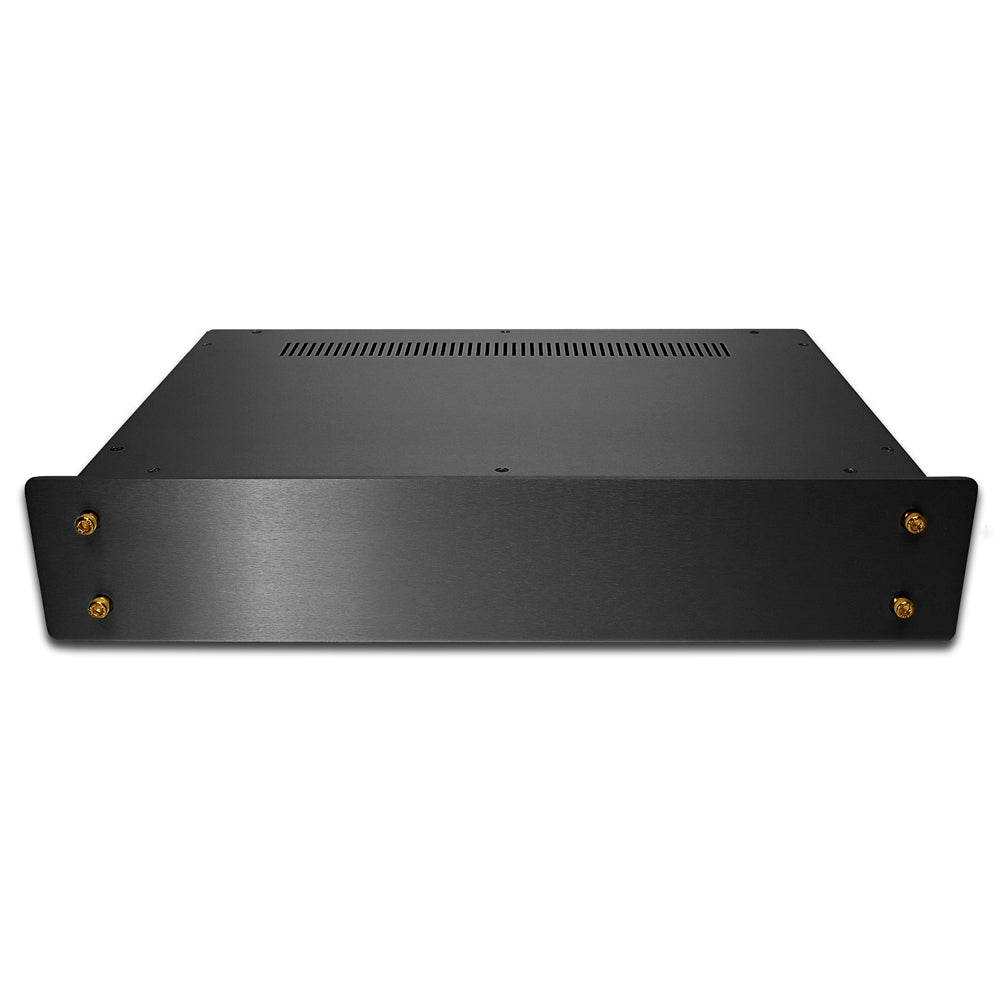

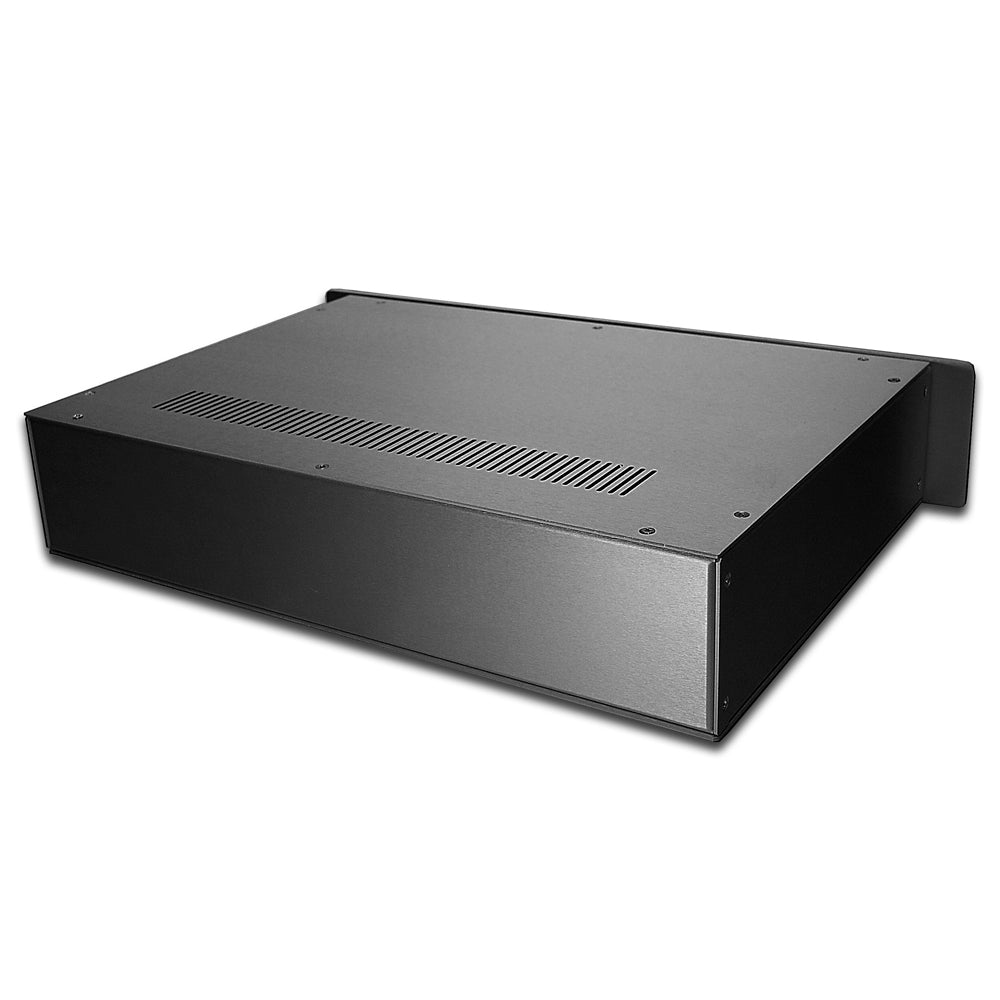

• Classic Satin Black: Deep, industrial-grade textured finish for standard modern electronic equipment arrays.

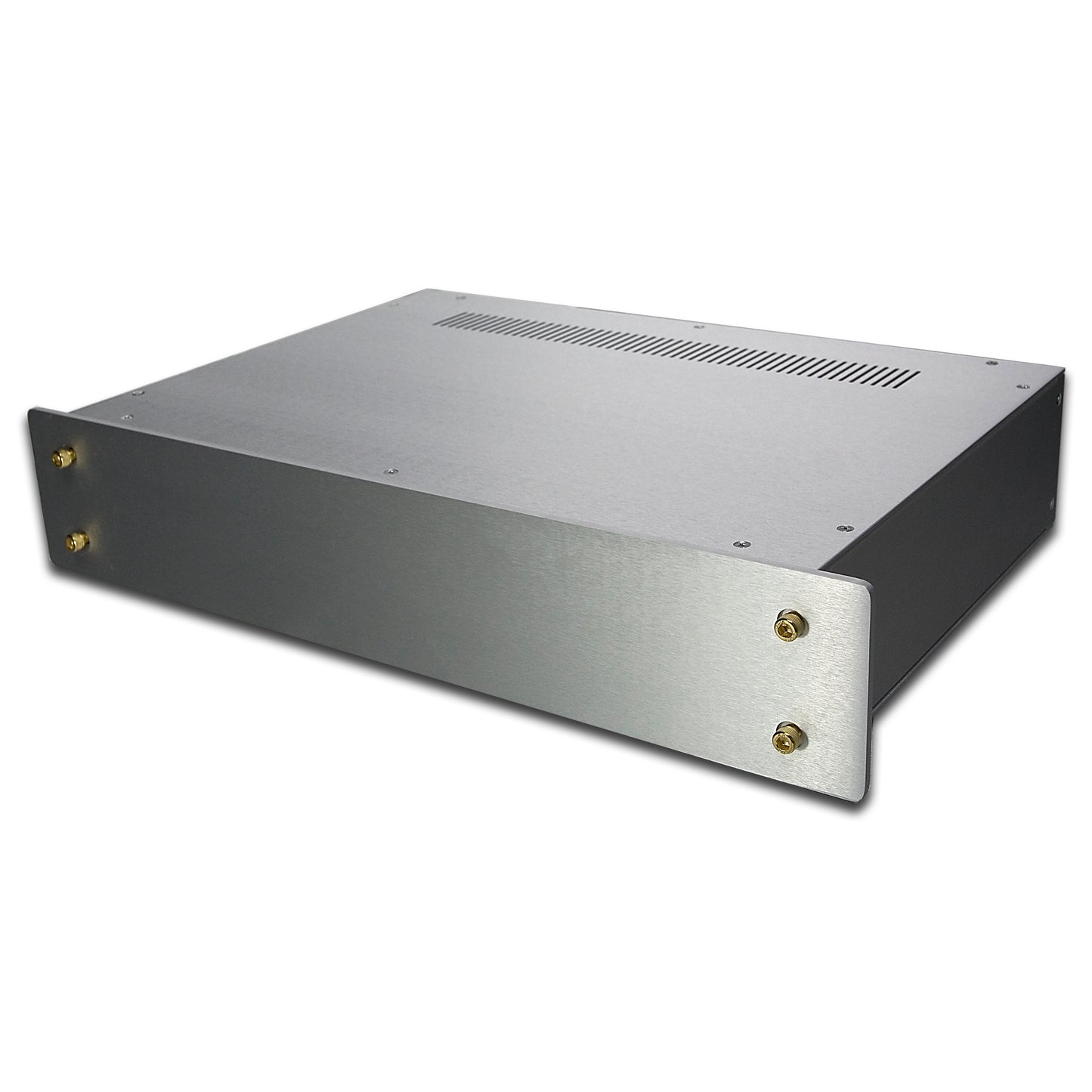

• Brushed Matte Silver: Elegant, modern minimalist metallic finish ideal for premium residential audio setups.

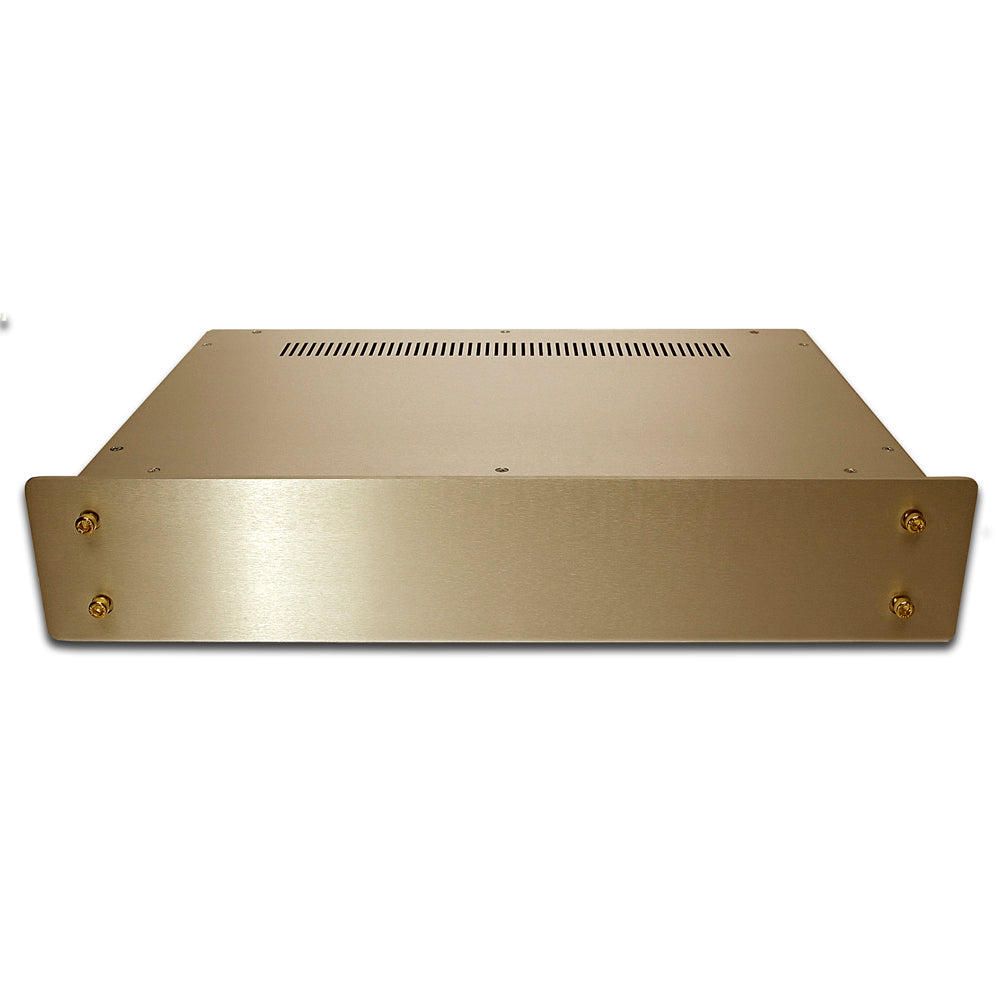

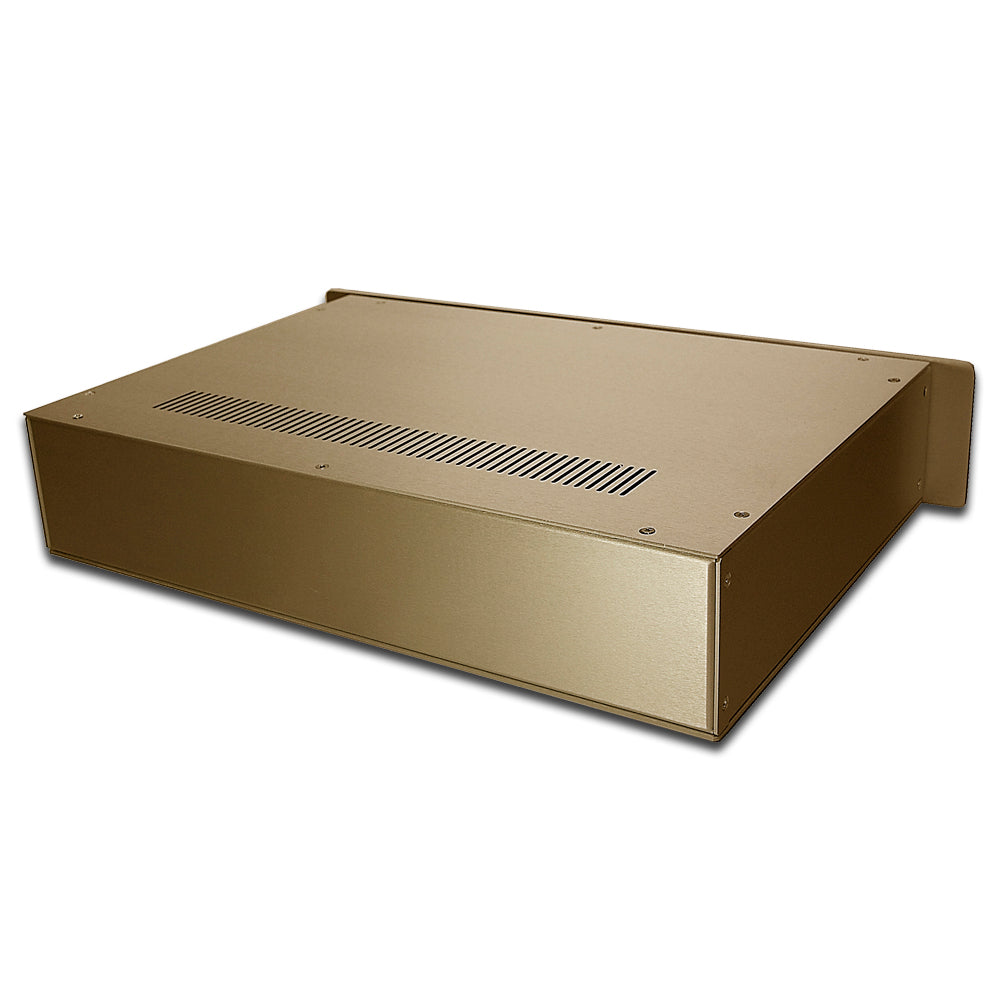

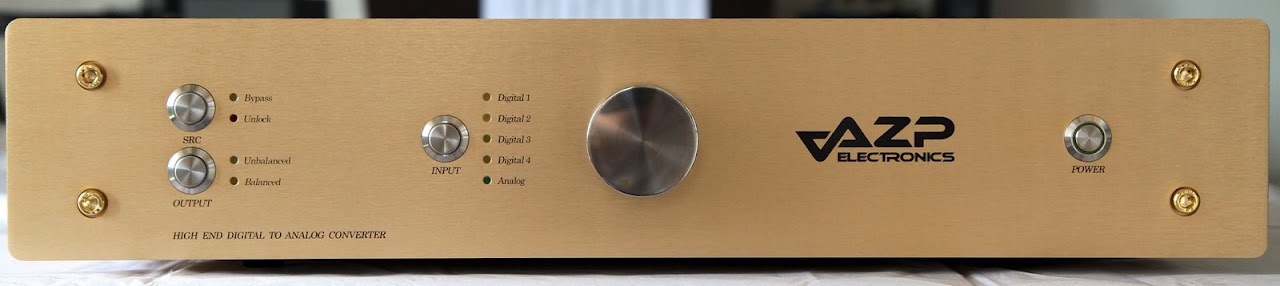

• Luxury Champagne Gold: Elite, boutique audiophile finish for high-end pre-amplifier and amplifier statements.

📐 Technical Specifications:

• Model Number: SL1924
• Enclosure Style: Premium 19" Width Custom 3.6" Height Full Aluminium Desktop Chassis (Non-Rack mount Layout)
• Panel Size: Width 19" (481mm) x Height 3.6" (91mm)
• Front Panel Thickness: Ultra-Rigid 5mm Heavy-Gauge Machined Aluminium Faceplate
• Body External Size: Width 17" (432mm) x Height 3.5" (88mm)
• Depth Profile: 12" (309mm)
• Material Composition: 100% Industrial Grade Full Aluminium Alloy Construction (Zero Steel)
• Weight: Approx. 6.6lbs (3kg)
• Color & Finish Options: Brushed Anodized Faceplate (Available in Black, Silver, or Gold) with matching Anodized Aluminium Body Panels
• Inclusions: Complete machine assembly hardware screws and 4 high-quality non-slip stabilizing rubber feet

⚙️ Key Product Features:

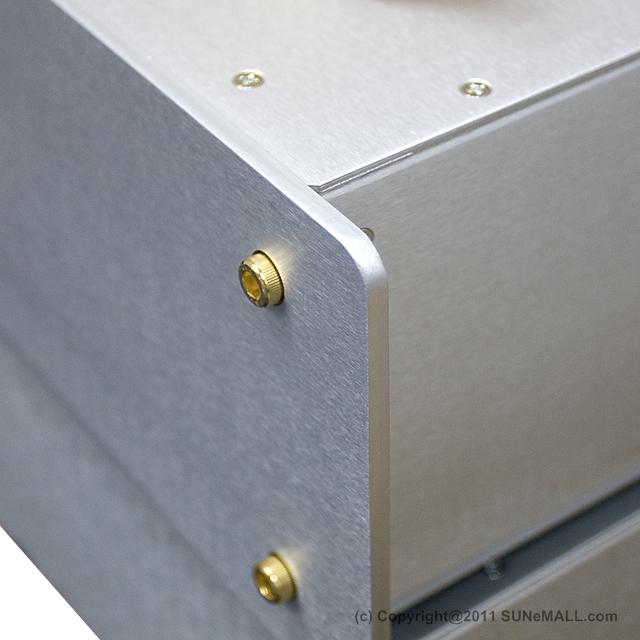

• Boutique 5mm Front Plate Thickness: Engineered with a massive 5mm faceplate to support heavy chassis component loads, eliminate physical panel flexing under heavy dial rotations, and project a distinct premium feel.
• 100% Full Aluminium Desktop Design: Fabricated entirely from heavy-duty aluminium plates to ensure high structural rigidity. The handle-free faceplate offers a completely flush look that integrates seamlessly with clean component aesthetics and modern technical desk setups.
• Fully Removable Multi-Panel Setup: The thick front aluminium control faceplate, top panel, and bottom panel are completely independent. This layout makes bench servicing, internal component populating, board testing, and custom component layout changes incredibly straightforward.
• Highly Machinable Aluminium Canvas: The rugged aluminium body shell arrives in a blank, un-drilled state. Because aluminium is highly machinable, it serves as an excellent panel for effortless local drilling or CNC punching for custom potentiometer shafts, inputs, or power arrays.
• Superior Non-Magnetic Shielding: Because the body is fabricated entirely of non-ferrous aluminium alloy, it provides natural, high-performance resistance to environmental RF (Radio Frequency) and EMI noise, keeping delicate preamp paths entirely free of background hum.
• Flat Pack Quick Assembly: Supplied individually packaged and in flat pack form to protect components during international transit, the enclosure features precision-tapped holes allowing clean, solid assembly in just minutes.

🛠️ Need Factory Pre-Drilling or Silk-Screening?

Planning a commercial production run for your audio brand? We can save you massive assembly labor. We offer in-house factory CNC punching for your custom connection layouts, specialized powder coatings, and high-resolution laser engraving or silk-screen branding. Head to our Custom CNC & Laser Quotes page to upload your design blueprints for a direct factory estimate.
