SL1494 Full Aluminum Alloy Desktop Audio Chassis

The SUNeMALL SL1494 is a premium, factory-direct custom full aluminium alloy project enclosure engineered specifically for compact high-end Hi-Fi pre-amplifiers, integrated power amplifiers, and custom audio processors. Constructed entirely from premium, non-ferrous aluminium panels, the SL1494 delivers an elite architectural aesthetic alongside exceptional structural strength at an economical factory-direct price point.

🎨 Dual Finish Color Options Available:

Tailor your hardware project to match your existing audio stack or workbench design identity. This model features an ultra-thick front panel available in two distinct luxury anodised finishes:

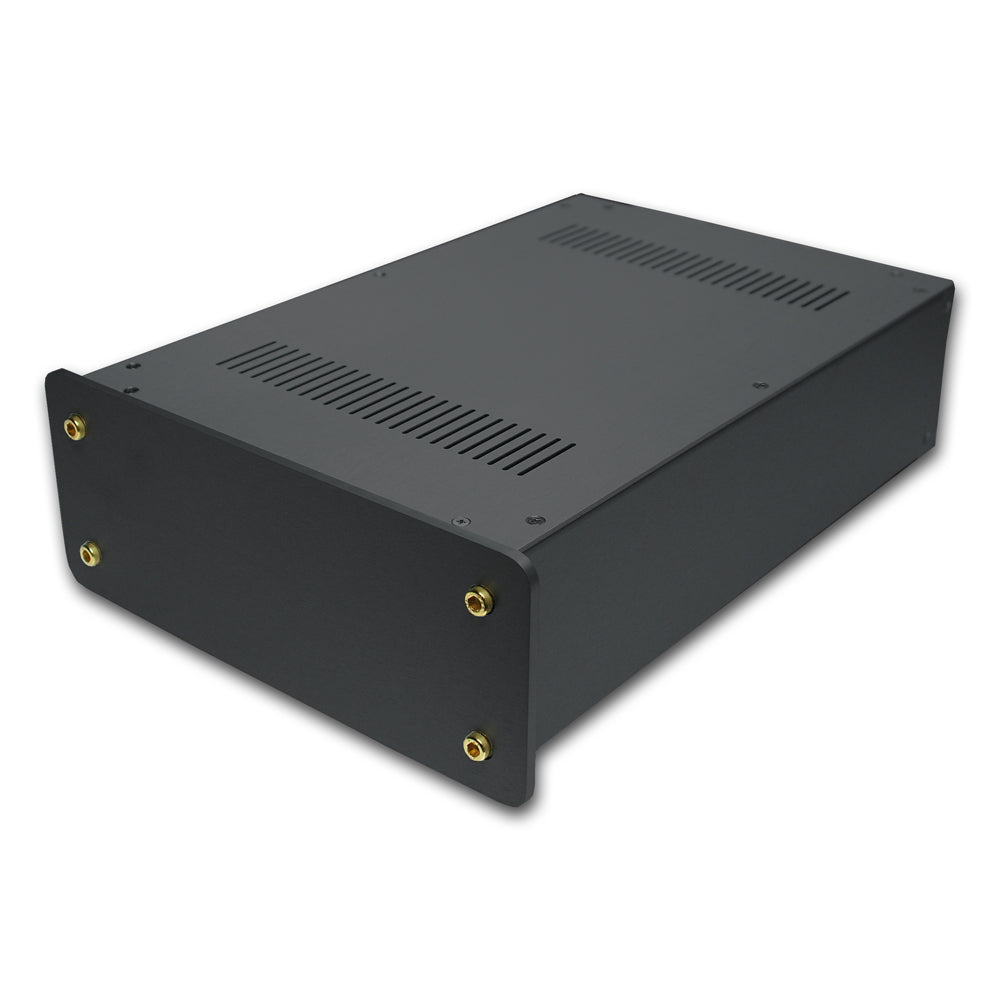

• Brushed Matte Black: Deep, industrial-grade textured finish for standard modern electronic equipment arrays.

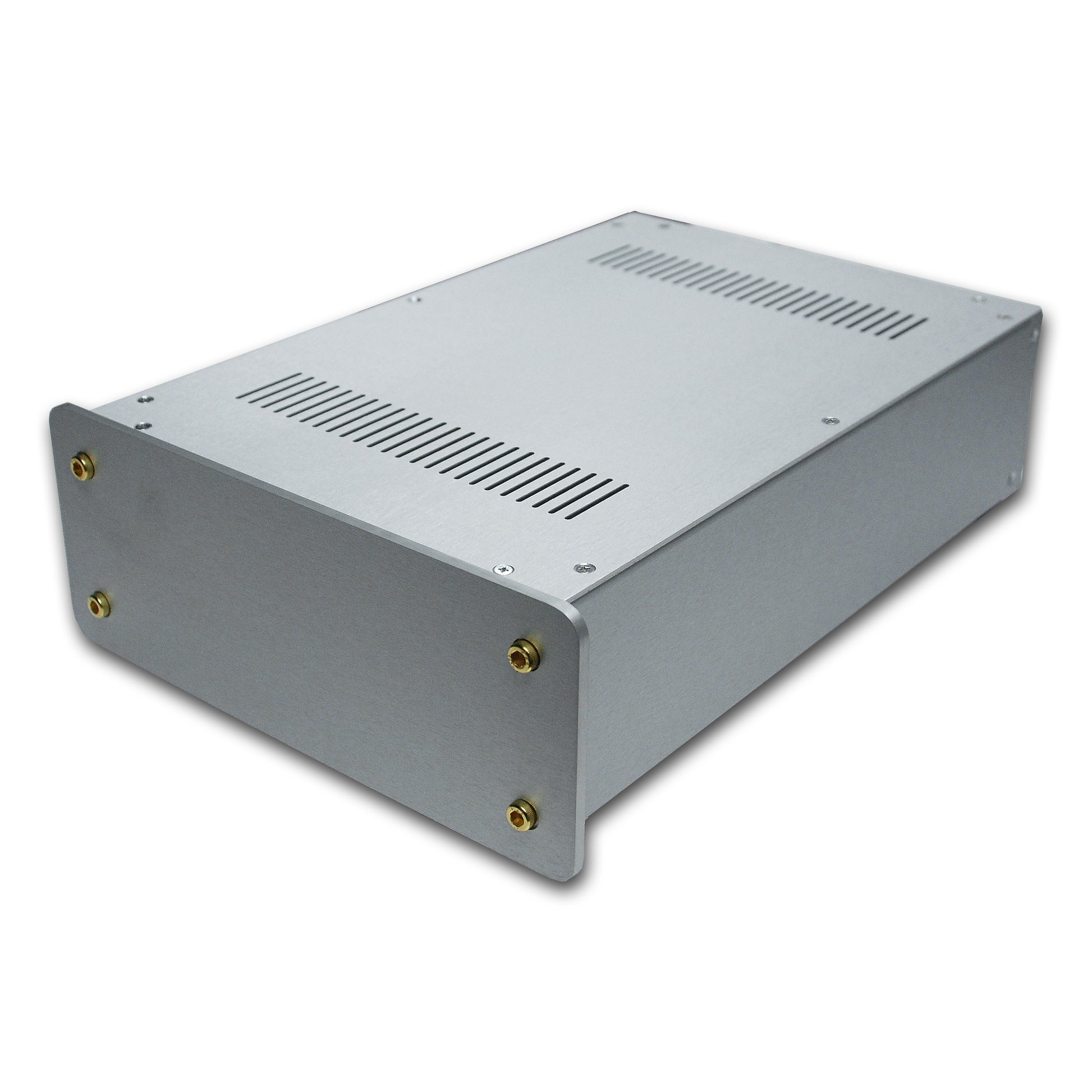

• Brushed Matte Natural Silver: Elegant, modern minimalist metallic finish ideal for premium residential audio setups.

📐 Technical Specifications:

• Model Number: SL1494
• Enclosure Style: Premium 10" Width Custom 4" Height Full Aluminium Desktop Chassis (Non-Rack mount Layout)
• Panel Size: Width 10" (255mm) x Height 4" (103mm)
• Front Panel Thickness: Heavy-Duty 5mm Precision-Machined Aluminium Faceplate
• Body External Size: Width 9" (230mm) x Height 3.8" (96mm)
• Depth Profile: 14" (360mm Deep Compact Footprint)
• Material Composition: 100% Industrial Grade Full Aluminium Alloy Construction (Zero Steel)
• Weight: Approx. 4.5 lbs / 2.0kg
• Color & Finish Options: Brushed Anodized Faceplate (Available in Natural Silver or Black) with matching Anodized Aluminium Body Panels
• Ventilation: Standard precision-punched cooling vent holes integrated on the top cover
• Inclusions: Complete machine assembly hardware screws and 4 high-quality non-slip stabilizing rubber feet

⚙️ Key Product Features:

• Rigid 5mm Front Plate Thickness: Engineered with a substantial 5mm thick aluminum faceplate to support heavy component interfaces, resist structural warping, and provide a perfectly flush, high-end industrial profile.
• 100% Full Aluminium Compact Design: Fabricated entirely from heavy-duty aluminium plates to ensure high structural rigidity. The handle-free faceplate offers a completely clean look that integrates seamlessly with boutique component aesthetics and modern technical desks.
• Fully Removable Multi-Panel Setup: The thick front aluminium control faceplate, top panel, and bottom panel are completely independent. This layout makes bench servicing, internal component populating, board testing, and custom component layout changes incredibly straightforward.
• Highly Machinable Aluminium Canvas: The rugged aluminium body shell arrives in a blank state. Because aluminium is highly machinable, it serves as an excellent panel for effortless local drilling or CNC punching for custom potentiometer shafts, inputs, or power arrays.
• Superior Non-Magnetic Shielding: Because the body is fabricated entirely of non-ferrous aluminium alloy, it provides natural, high-performance resistance to environmental RF (Radio Frequency) and EMI noise, keeping delicate preamp paths entirely free of background hum.
• Flat Pack Quick Assembly: Supplied individually packaged and in flat pack form to protect components during international transit, the enclosure features precision-tapped holes allowing clean, solid assembly in just minutes.

🛠️ Need Factory Pre-Drilling or Silk-Screening?

Planning a commercial production run for your audio brand? We can save you massive assembly labor. We offer in-house factory CNC punching for your custom connection layouts, specialized powder coatings, and high-resolution laser engraving or silk-screen branding. Head to our Custom Manufacturing page to upload your design blueprints for a direct factory estimate.
