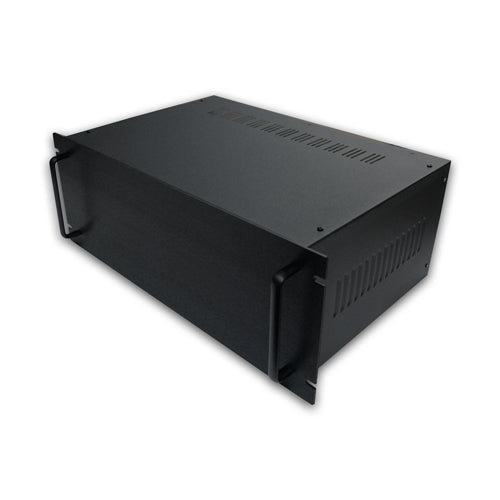

SG1927 19-inch Rack Mount Audio Chassis

The SUNeMALL SG1927 is a premium, factory-direct specialized large-format 19-inch rackmount audio chassis engineered specifically for high-power commercial amplifiers, deep electronic matrices, laboratory hardware systems, and multi-rail custom electronics setups requiring maximum vertical spacing. Combining an extra-thick, elegant aluminium face with a tough steel body carcass, the SG1927 provides a heavy-duty professional industrial finish at an economical factory-direct price point.

📐 Technical Specifications:

• Model Number: SG1927
• Enclosure Style: Standard 19" Width Custom 7" Height Rack Mount Audio Chassis (Dual Handle Layout)
• Panel Size: Width 19" (482.5mm) x Height 7" (178mm)
• Body External Size: Width 17" (436mm) x Height 6.6" (169mm)
• Depth Profile: 11.5" (290mm Deep Rack Space Layout)
• Material Composition: Extra-Thick Anodized Aluminum Front Panel & Tough Structural Mild Steel Body
• Weight: Approx. 8.8 lbs / 4.0kg
• Color & Finish: Premium Brushed Anodized Finish Front Panel with an Anodized Handle Finish and Black Painted Mild Steel Body
• Inclusions: Includes 2 premium aluminum front handles, complete assembly screws and 4 high-quality non-slip rubber feet

⚙️ Key Product Features:

• Heavy-Duty Dual-Handle Configuration: Features two matching, securely integrated aluminum front pull handles. This layout dramatically improves ergonomics, permitting safe, easy rack installation, quick transportation, and balanced handling in heavy-load audio environments.
• Maximized 7" Internal Spatial Profile: The substantial vertical clearance allows for expansive structural setups. This design is highly optimal for heavy industrial power distribution arrays, ventilation block integrations, oversized tube configurations, and large components that cannot clear low-profile chassis.
• Removable Multi-Panel Framework: The thick aluminum faceplate along with the tough steel top and bottom panels are completely removable. This layout makes bench servicing, internal component populating, board testing, and circuit assembly incredibly straightforward.
• Highly Machinable Steel Body: The rugged steel shell arrives in a blank, un-drilled state, providing a uniform and smooth surface layer that can be easily machined, drilled, or hole-punched locally to fit custom potentiometer shafts, complex connector plates, or power inputs.
• Faraday Shielding Integrity: Strict, tight-fitting metal-to-metal panel junctions provide high-performance RF (Radio Frequency) and EMI noise protection, keeping delicate communication boards or studio signals perfectly isolated from background interference.

🛠️ Need Factory Pre-Drilling or Silk-Screening?

Planning a commercial production run for your network or audio line? We can save you valuable assembly labor. We offer in-house factory CNC port configurations, specialized color powder coatings, and high-resolution laser engraving or silk-screen branding. Head to our Custom CNC & Laser Quotes page to upload your design blueprints for a direct factory estimate.
