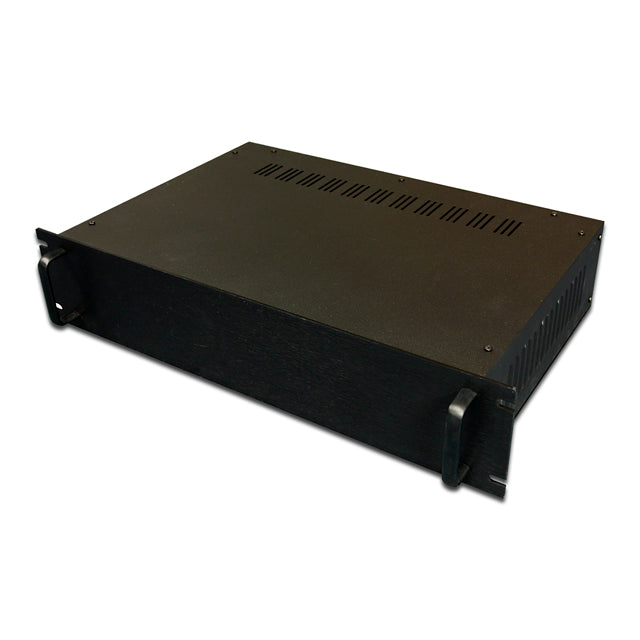

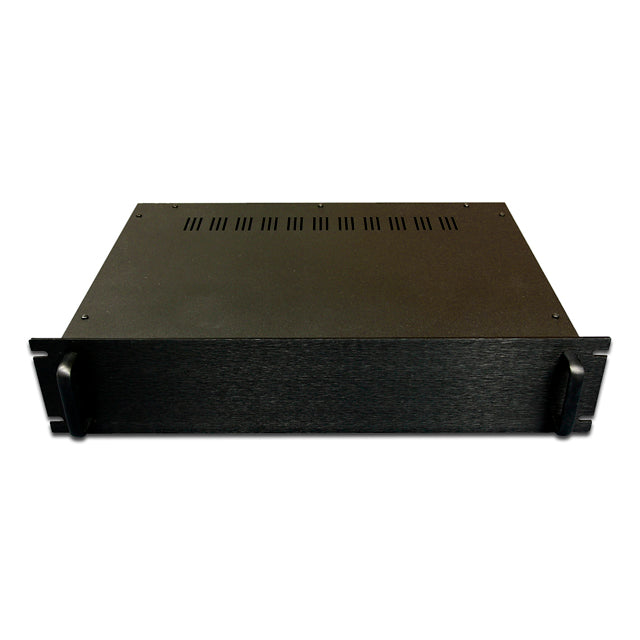

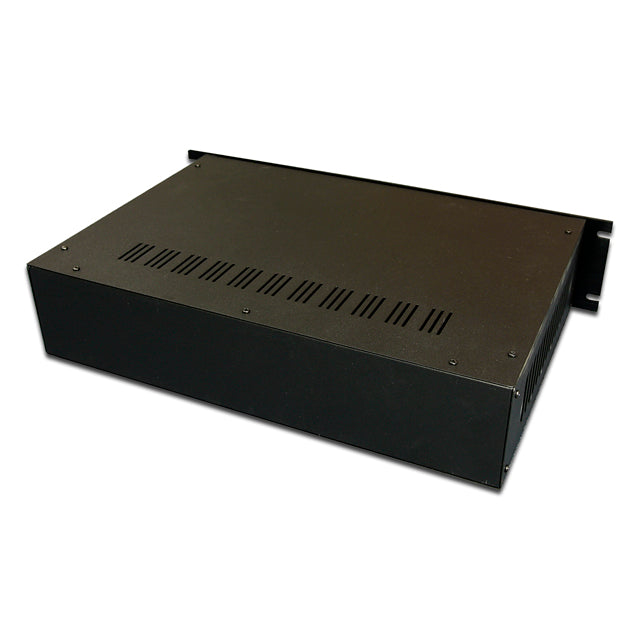

SG1924 19-inch Rack Mount Audio Chassis

The SUNeMALL SG1924 is a premium, factory-direct custom 19-inch rack mount audio chassis engineered specifically for high-end Hi-Fi pre-amplifiers, integrated power amplifiers, custom studio processors, and professional electronic systems requiring specialized vertical clearance. Combining a robust hybrid architecture with heavy-duty physical handles, the SG1924 provides a professional industrial finish alongside high strength and structural rigidity at an economical factory-direct price point.

📐 Technical Specifications:

• Model Number: SG1924
• Enclosure Style: Standard 19" Width Custom 4" Height Rack Mount Audio Chassis (Dual Handle Layout)
• Panel Size: Width 19" (482.5mm) x Height 4" (100mm)
• Body External Size: Width 17" (430mm) x Height 3.8" (97mm)
• Depth Profile: 11.4" (290mm Mid-Depth Space Layout)
• Material Composition: 2mm Premium Anodized Aluminum Front Panel & Tough Structural Mild Steel Body
• Weight: Approx. 6.7lbs (3kg)
• Color & Finish: Brushed Anodized Finishing Front Panel with an Anodized Handle Finish and Black Painted Mild Steel Body
• Inclusions: Includes 2 premium aluminum front handles, complete assembly screws and 4 high-quality non-slip rubber feet.

⚙️ Key Product Features:

• Heavy-Duty Dual-Handle Configuration: Features two matching, securely integrated aluminum front pull handles. This layout dramatically improves ergonomics, permitting safe, easy rack installation, quick transportation, and balanced handling in heavy-load audio environments.
• Custom 4" Clearance Volume: Specifically engineered with extra vertical breathing room compared to standard 2U units to safely house taller toroidal transformers, larger cooling fan grids, and multiple horizontal PCB rails without structural sagging.
• Removable Multi-Panel Framework: The thick aluminum faceplate along with the tough steel top and bottom panels are completely removable. This layout makes bench servicing, internal component populating, board testing, and circuit assembly incredibly straightforward.
• Highly Machinable Steel Body: The rugged steel shell arrives in a blank, un-drilled state, providing a uniform and smooth surface layer that can be easily machined, drilled, or hole-punched locally to fit custom potentiometer shafts, dials, or back-panel power inlets.
• Excellent Electrical Isolation: Tightly fitting metal-to-metal panel junctions create a comprehensive Faraday cage, supplying superior RF (Radio Frequency) and EMI shielding to keep delicate preamp audio signals and high-gain matrices completely free of background hum.

🛠️ Need Factory Pre-Drilling or Silk-Screening?

Planning a commercial production run for your audio brand? We can save you valuable assembly labor. We offer in-house factory CNC punching for your custom connection layouts, specialized powder coatings, and high-resolution laser engraving or silk-screen branding. Head to our Custom CNC & Laser Quotes page to upload your design blueprints for a direct factory estimate.
