SG1901U 19-inch 1U Rack Mount Audio Chassis

The SUNeMALL SG1901U is a premium, factory-direct standard 19-inch 1U rack mount audio chassis engineered specifically for high-end Hi-Fi pre-amplifiers, low-profile studio processors, network audio nodes, and professional custom electronic systems. Combining a clean, handle-free front panel with a tough steel body structure, the SG1901U provides a professional industrial finish alongside high strength and structural rigidity at an economical factory-direct price point.

📐 Technical Specifications:

• Model Number: SG1901U
• Enclosure Style: Standard 19" 1U Rack Mount Audio Chassis (Handle-Free Layout)
• Panel Size: Width 19" (483mm) x Height 1.75" (44.5mm)
• Body External Size: Width 16.7" (425mm) x Height 1.5" (39mm)
• Depth Profile: 7.9" (200mm Shallow Rack Space Layout)
• Weight: Approx. 3.5lbs (1.6kg)
• Material Composition: 2mm Premium Anodized Aluminum Front Panel & Tough Structural Steel Body
• Color & Finish: Brushed Anodized Finishing Front Panel with a Painted Coating Black Mild Steel Body

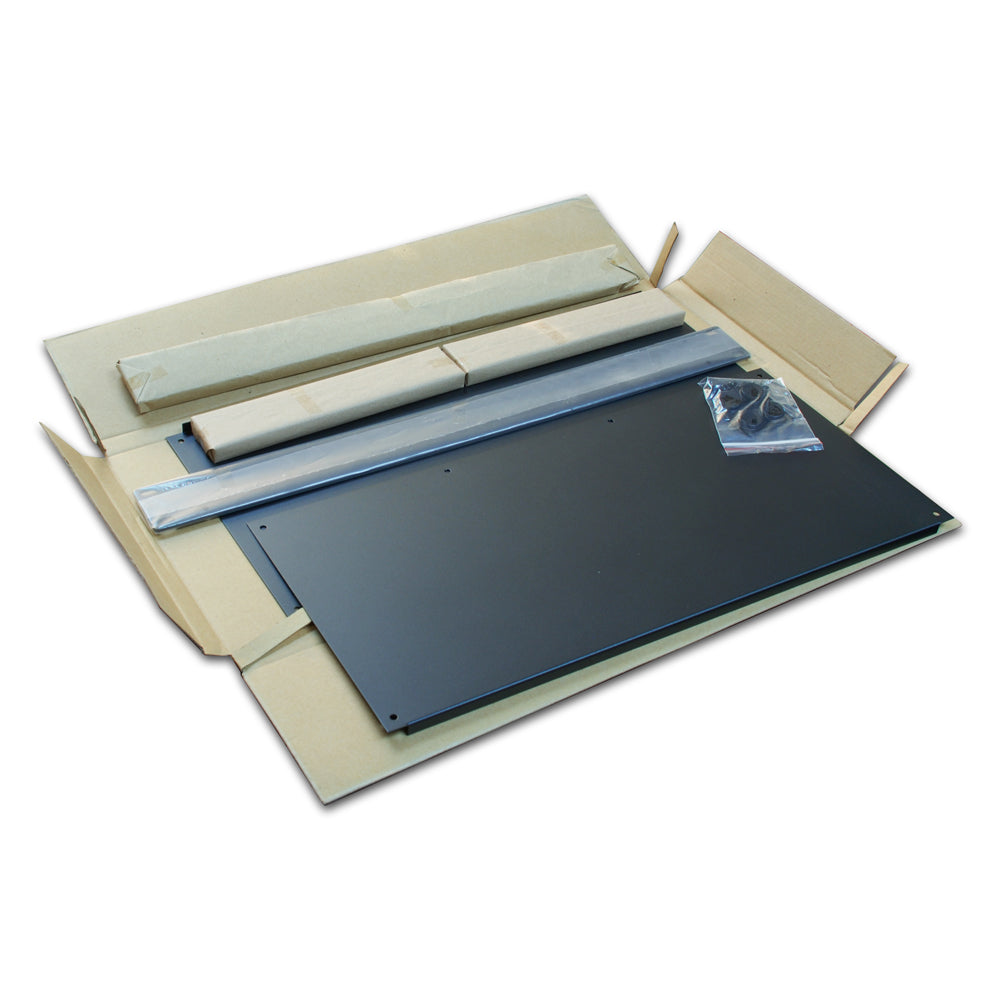

• Inclusions: Includes complete assembly screws and 4 high-quality non-slip rubber feet

⚙️ Key Product Features:

• Low-Profile Handle-Free Design: Features a flat, sleek faceplate without protruding handles, making it perfect for minimalist aesthetics, tight cabinet glass doors, and modern desktop rack setups.

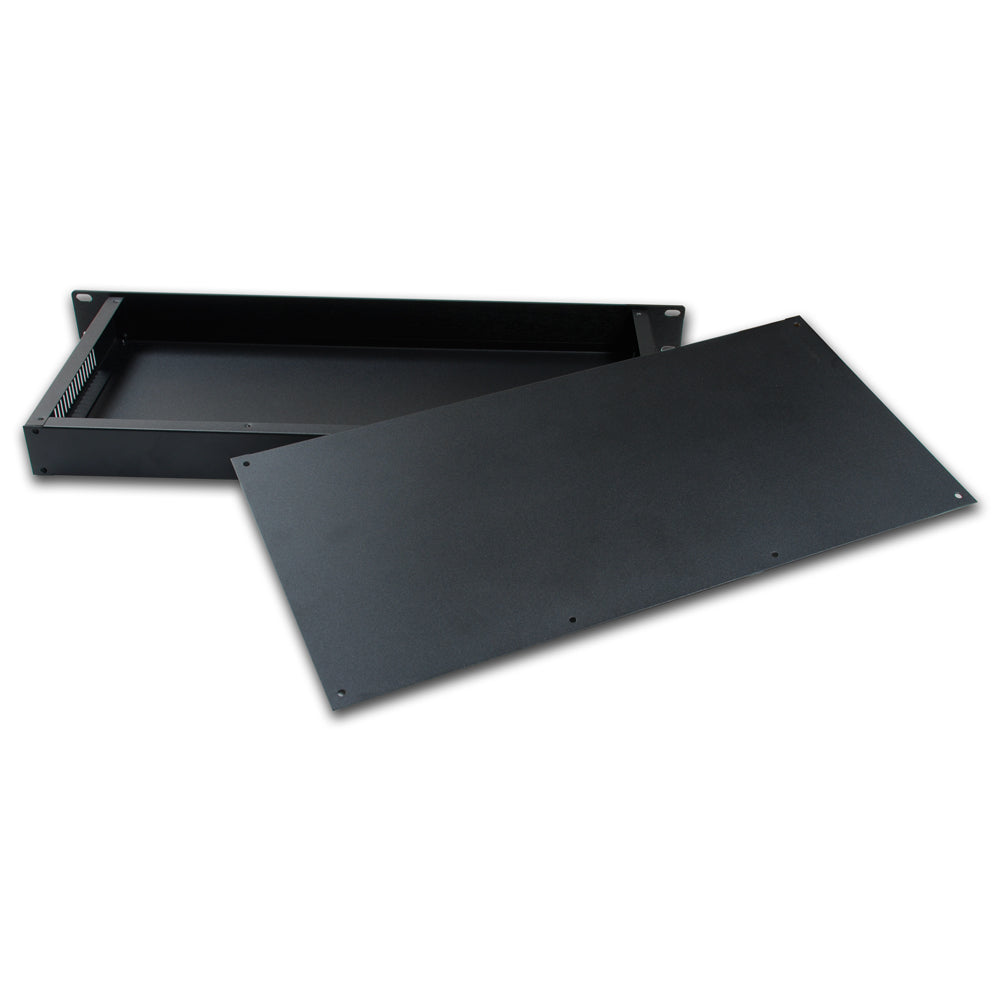

• Removable Multi-Panel Framework: The thick aluminium faceplate along with the tough steel top and bottom panels are completely removable. This layout makes bench servicing, internal component populating, board testing, and circuit assembly incredibly straightforward.
• Highly Machinable Steel Body: The rugged steel shell arrives in a blank, un-drilled state, providing a uniform and smooth surface layer that can be easily machined, drilled, or hole-punched locally to fit custom potentiometer shafts, inputs, or power arrays.
• Excellent Electrical Isolation: Tightly fitting metal-to-metal panel junctions create a comprehensive Faraday cage, supplying superior RF (Radio Frequency) and EMI shielding to keep delicate preamp audio signals and high-gain matrices completely free of background hum.

🛠️ Need Factory Pre-Drilling or Silk-Screening?

Planning a commercial production run for your audio brand? We can save you valuable assembly labor. We offer in-house factory CNC punching for your custom connection layouts, specialized powder coatings, and high-resolution laser engraving or silk-screen branding. Head to our Custom CNC & Laser Quotes page to upload your design blueprints for a direct factory estimate.
