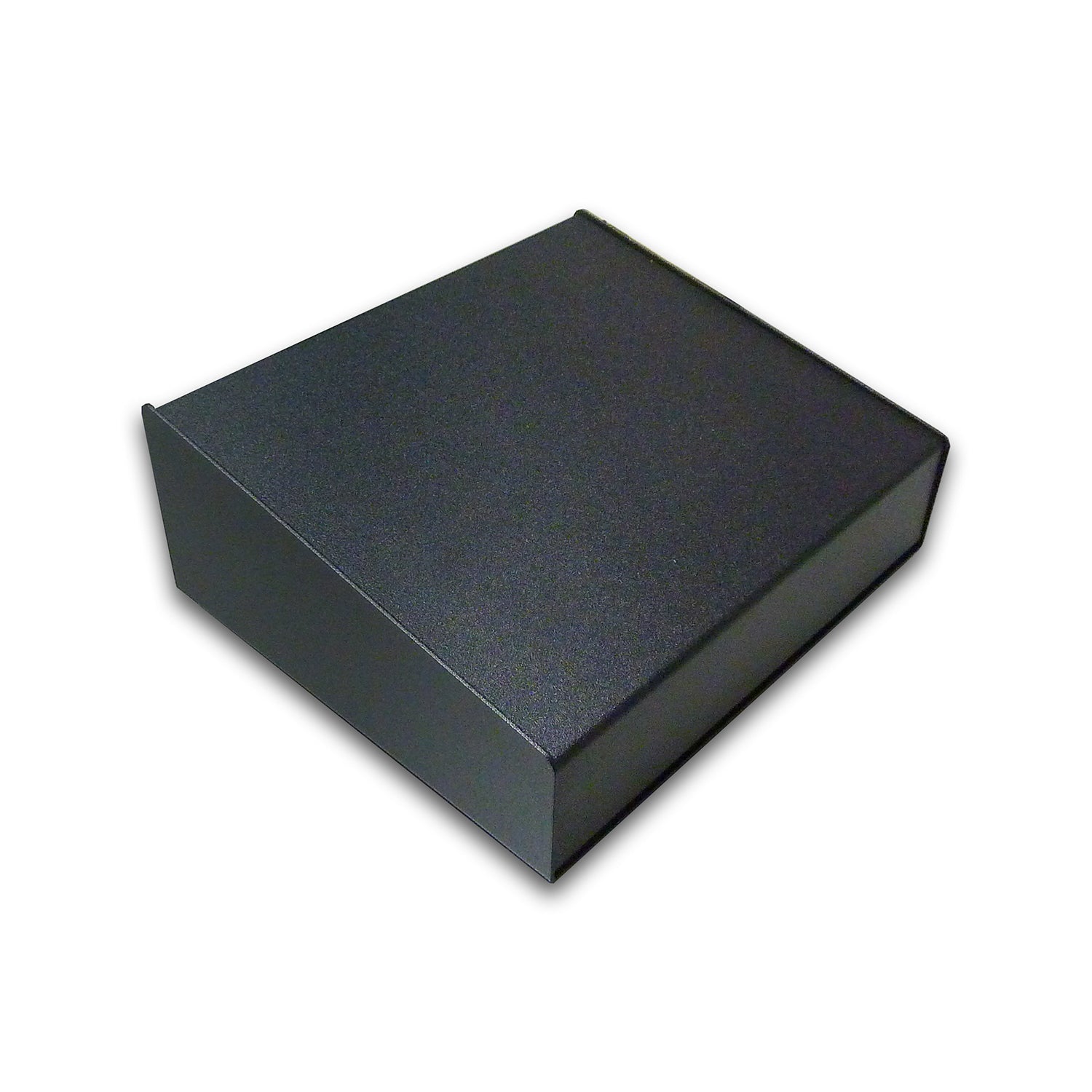

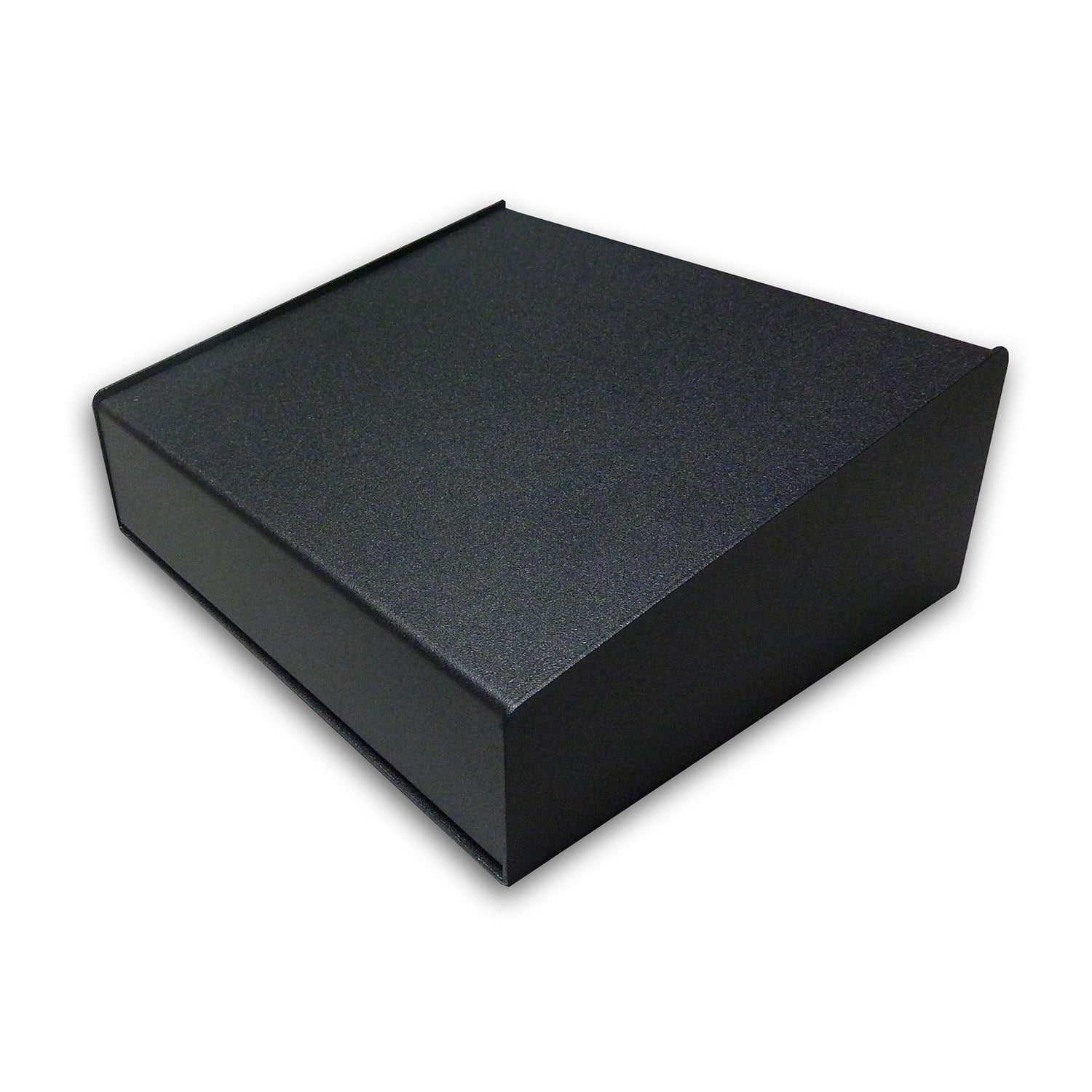

SF763 DIY Sloped Aluminum Instrument & Effects Pedal Enclosure

The SUNeMALL SF763 is a premium, factory-direct electronics project and effects enclosure engineered specifically for boutique guitar pedal builders, custom instrument designers, and professional audio hardware manufacturers. Utilizing a specialized multi-piece architecture, the SF763 combines an aluminum top panel with a robust mild steel base to deliver a solid structural foundation without unnecessary weight.

📐 Technical Specifications:

• Model Number: SF763

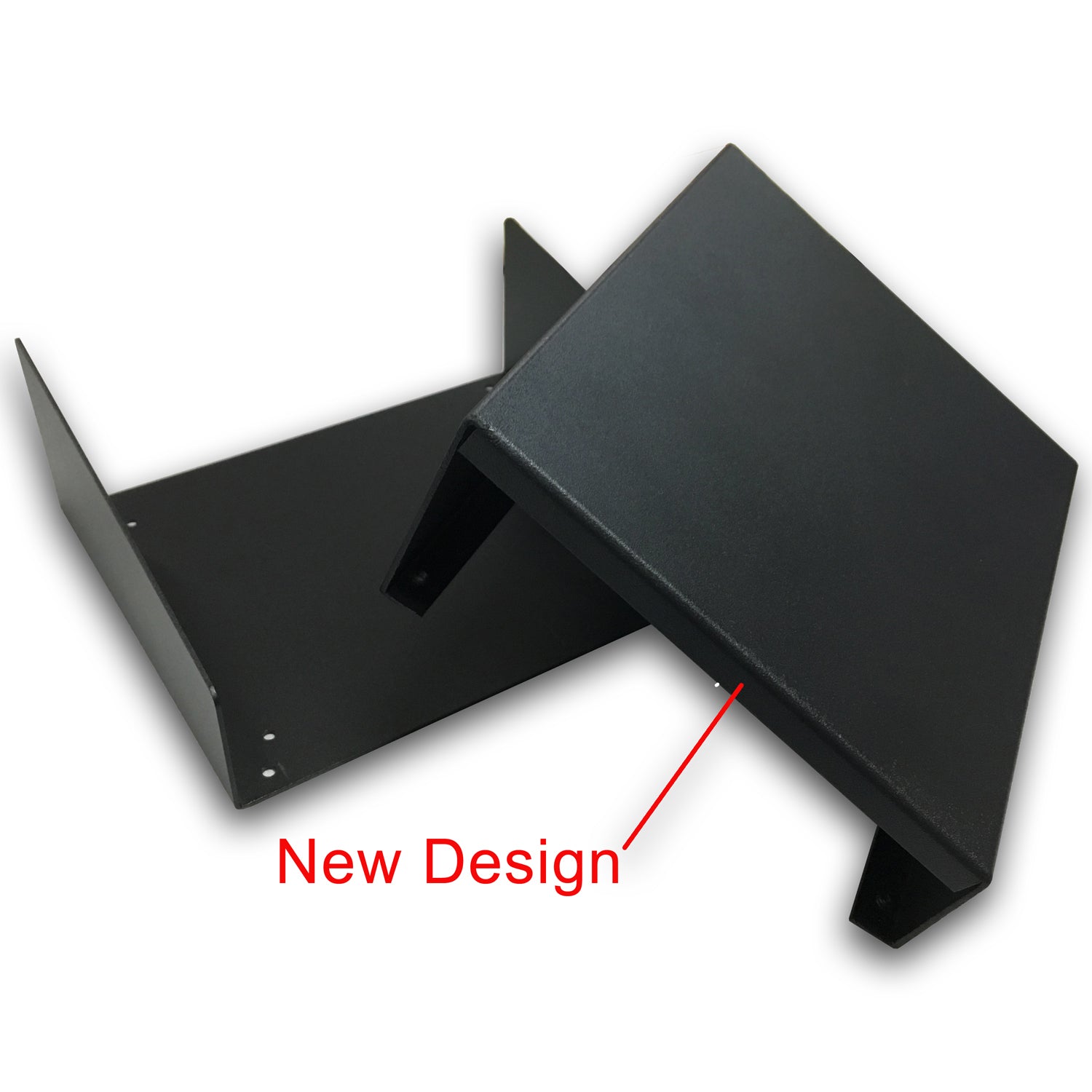

• Enclosure Style: Precision Bent & Folded Multi-Piece Architecture
• Body Dimensions: Width 6.6" (167mm) x Height 1.6" (40mm front) / 2.6" (65mm rear)
• Depth Profile: 5.6" (143mm sloped panel surface)
• Material Composition:: Full Premium Industrial Grade Aluminum Top Cover & Robust Mild Steel Base
• Material Thickness: 1.5mm Top Cover / 1.2mm Protective Base
• Weight: Approx. 1.2 lbs(537g)
• Color & Finish: High-Durability Industrial Painted Black Coating

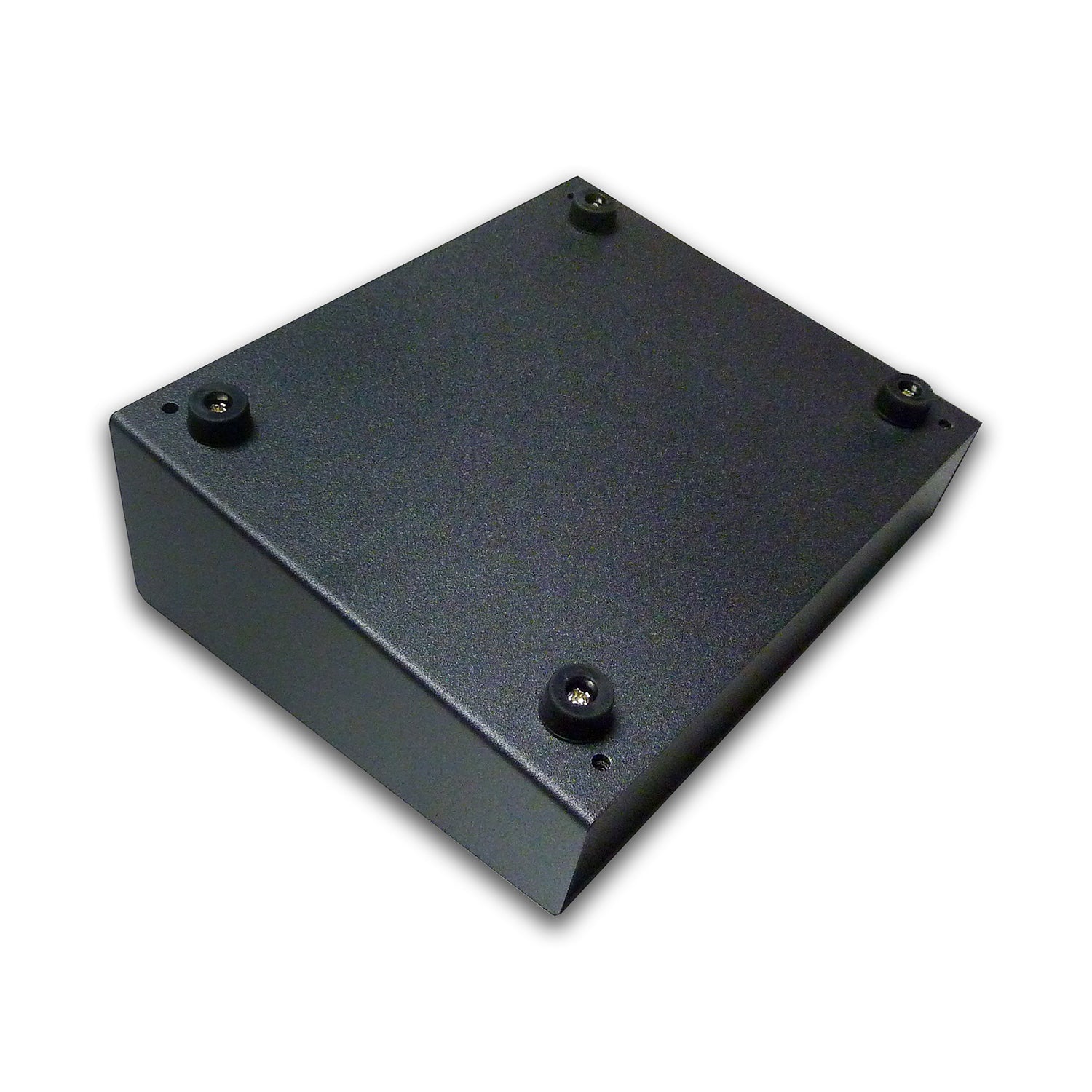

• Inclusions: Includes complete assembly screws and 4 high-quality non-slip rubber feet

⚙️ Key Product Features:

• Hybrid Material Engineering: Built with a 1.5mm aluminum cover for smooth custom drilling properties, paired with a solid 1.2mm mild steel base panel that firmly grounds internal circuits, bulky transformers, and hardware assemblies.
• Easy-Access Bench Design: Assembled cleanly via standard machine thread screws, allowing for repetitive assembly and disassembly. This setup simplifies workspace adjustments, custom pot wiring, and internal circuit maintenance.
• Clean CNC & Milling Canvas: The protective painted coating arrives uniform and smooth, providing an ideal canvas for custom drilling layout holes for 3PDT switches, toggle controls, 1/4" Neutrik audio jacks, or digital displays.

🛠️ Need Factory Pre-Drilling or Silk-Screening?

Planning a commercial production run for your brand? We can handle the preparation work for you. We offer in-house factory CNC punch milling for your custom connector ports, specialized anodizing, and high-resolution laser engraving or silk-screen branding. Head to our Custom CNC & Laser Quotes page to upload your design blueprints for a direct factory estimate.
