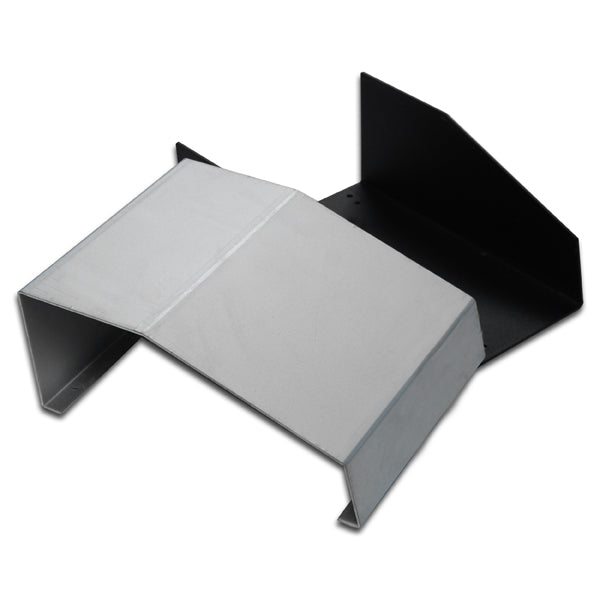

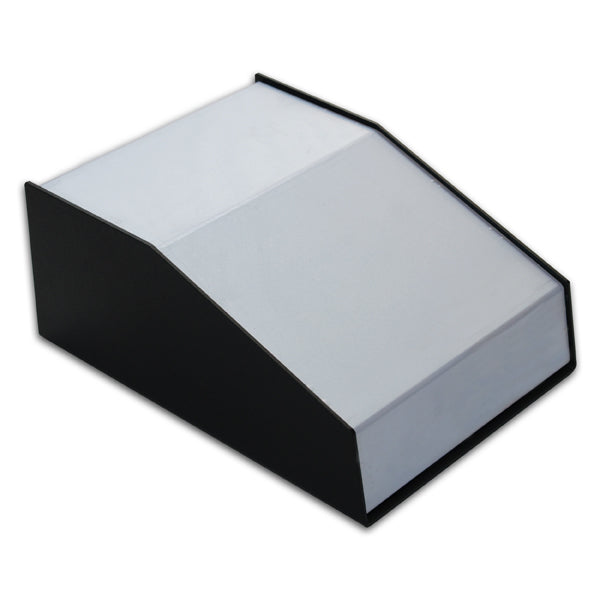

SF683 DIY Sloped Aluminum Instrument Project Enclosure

The SUNeMALL SF683 is an industrial-grade, factory-direct multi-purpose electronic project enclosure engineered specifically for hardware developers, DIY audio hobbyists, and laboratory instrument manufacturers. Featuring a spacious, distinct sloped layout, the SF683 provides an expansive, ergonomic user interface surface while delivering high structural strength and rigidity at an economical price.

📐 Technical Specifications:

• Model Number: SF683
• Enclosure Style: DIY Sloped Multi-Piece Architecture
• Body Dimensions: Width 5.7" (145mm) x Height 1.7" (43mm front) / 3.2" (82mm rear)
• Depth Profile: 4.5" (115mm sloped panel surface) / 3" (75mm flat footprint area)
• Material Composition: Full Premium Industrial Grade Aluminum
• Weight: Approx. 1.2lbs (516g)
• Color & Finish: Natural Raw Aluminum Top Cover with an Industrial Painted Coating Black Base
• Inclusions: Complete machine assembly screws and 4 high-quality non-slip rubber feet

📐 Technical Specifications:

• Model Number: SF1083
• Enclosure Style: Large-Format DIY Sloped Multi-Piece Architecture
• Body Dimensions: Width 9.6" (244mm) x Height 1.7" (44mm front) / 3.3" (83mm rear)
• Depth Profile: 4.6" (118mm sloped panel surface) / 3.1" (80mm flat footprint area)
• Material Composition: Full Premium Industrial Grade Aluminum
• Material Thickness: 1.5mm Top Sloped Cover / 2.2mm Heavy-Duty Protective Base
• Weight: Approx. 1.6 lbs / 745g
• Color & Finish: Natural Raw Aluminum Top Cover with an Industrial Painted Coating Black Base
• Inclusions: Complete machine assembly screws and 4 high-quality non-slip rubber feet

⚙️ Key Product Features:

• Easy-Service Machine Design: Assembled cleanly with machine screws, allowing for repetitive assembly and disassembly. This makes bench testing, component population, internal wiring adjustments, and maintenance incredibly straightforward.
• Clean CNC & Drilling Properties: The high-quality aluminum slope panel arrives blank and un-drilled, providing an expansive surface that is easily drilled, punched, or machined without fracturing—perfect for complex layout designs, dials, multi-jack routing, and screen cutouts.
• Excellent Electrical Shielding: Seamless aluminum-to-aluminum panel contact provides highly effective RF (Radio Frequency) and EMI shielding, isolating sensitive measurement or audio processing circuits from external noise.
• Ergonomic Console Angle: The integrated slope tilts the face-plate forward, dramatically improving visibility and physical accessibility for large desktop instruments or specialized boutique controllers.

🛠️ Need Factory Pre-Drilling or Silk-Screening?

Planning a commercial production run for your hardware line? We can handle the preparation work for you. We offer in-house factory CNC punch milling for your custom connector ports, specialized anodizing, and high-resolution laser engraving or silk-screen branding. Head to our Custom CNC & Laser Quotes page to upload your design blueprints for a direct factory estimate.
