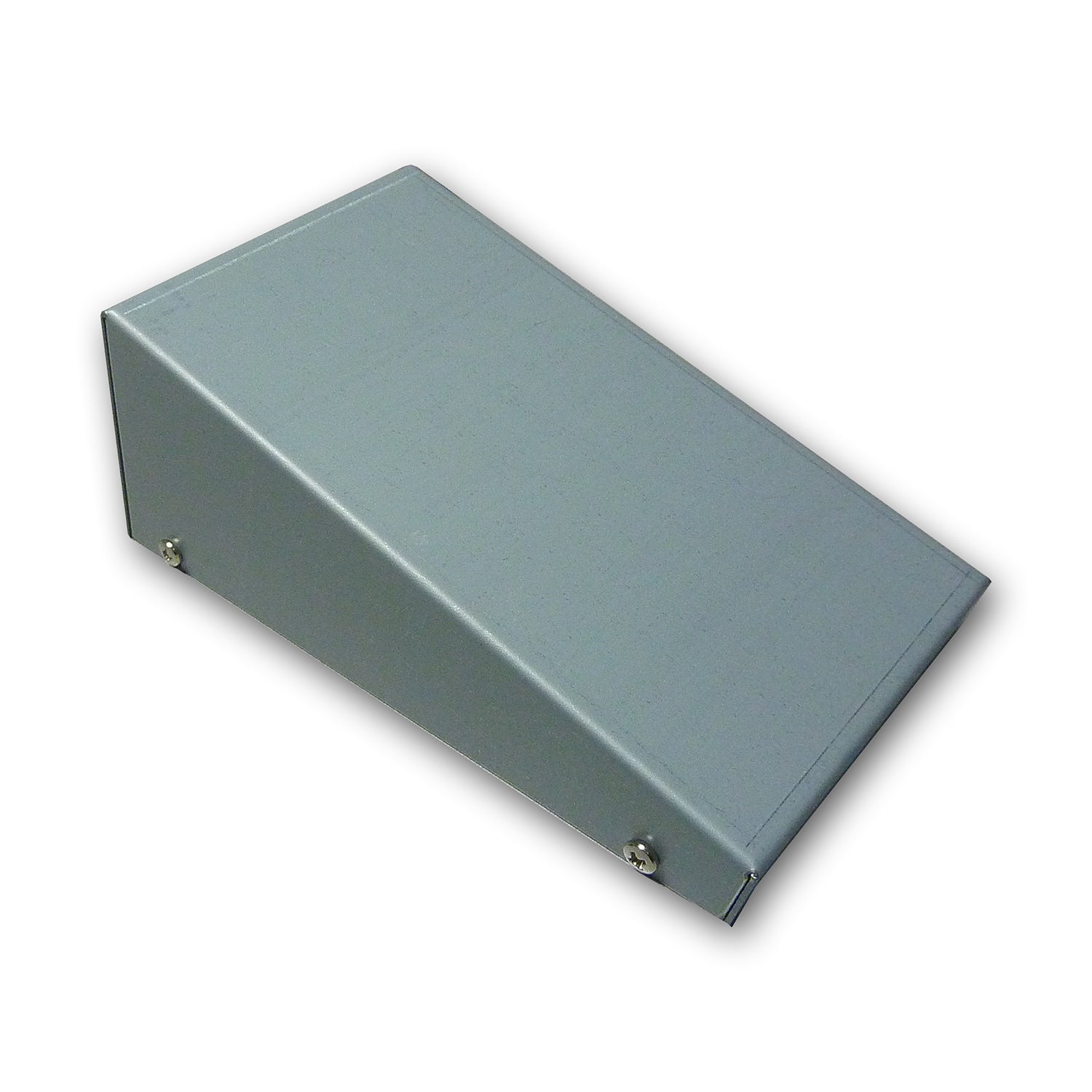

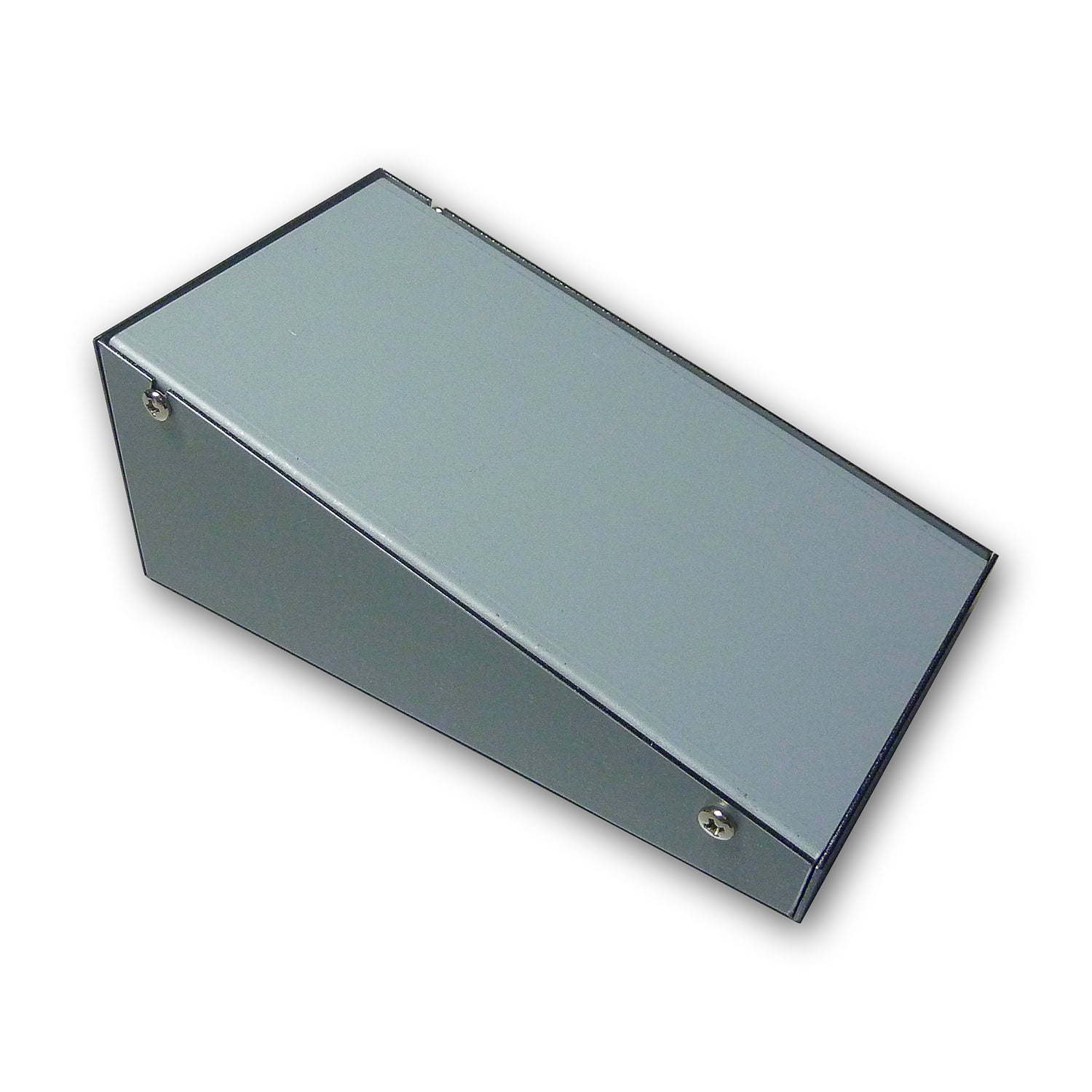

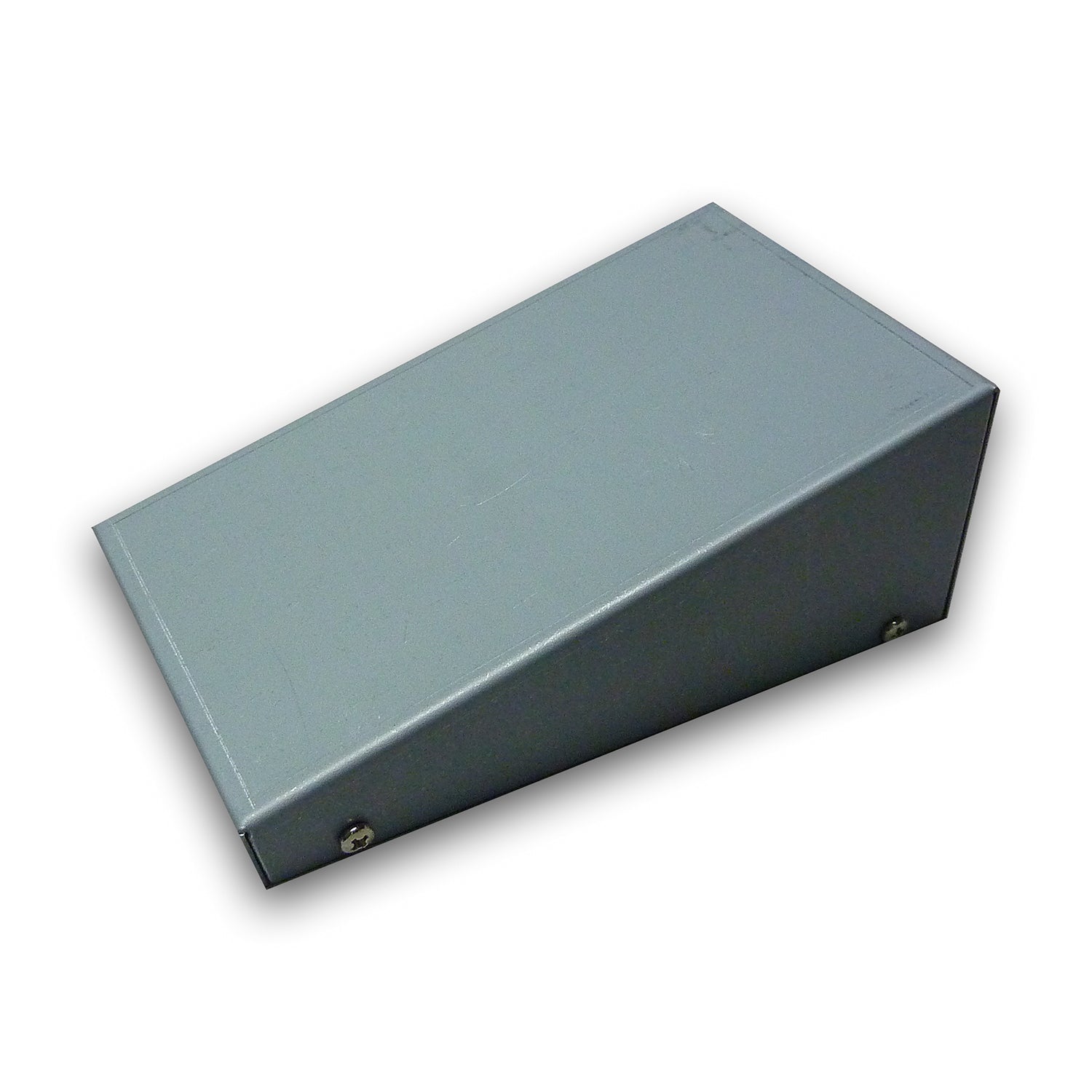

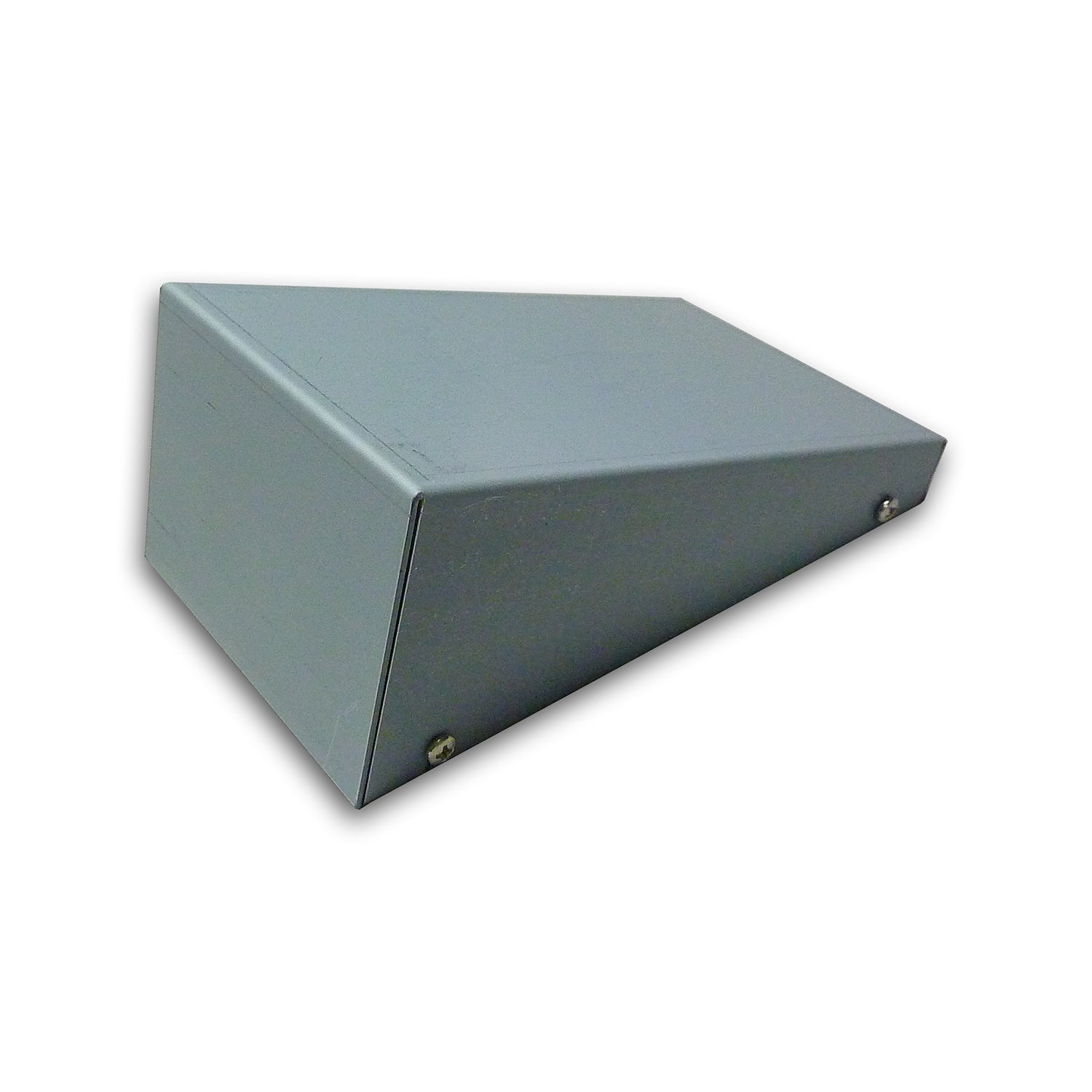

SF542 DIY Sloped Fuzz Pedal Project Enclosure

The SUNeMALL SF542 is a premium, factory-direct blank sloped pedal enclosure engineered specifically for boutique guitar effects builders, DIY fuzz project hobbyists, and multi-purpose electronic hardware manufacturers. Featuring a distinct, professional sloped layout, the SF542 provides an ergonomic layout that maximizes interior component space while delivering a classic vintage structural profile.

📐 Technical Specifications:

• Model Number: SF542
• Enclosure Style: DIY Blank Sloped Multi-Piece Architecture
• Body Dimensions: Width 3.1" (81mm) x Height 0.6" (15mm front) / 2.3" (60mm rear)
• Depth Profile: 5.9" (150mm)
• Material Composition: Raw Robust Mild Steel
• Material Thickness: 1.0mm
• Weight: Approx. 0.7 lbs (320g)
• Color & Finish: Natural Raw Metal & Factory Unfinished Canvas (may contain minor surface marks from sheet metal folding)
• Inclusions: Complete machine assembly screws

⚙️ Key Product Features:

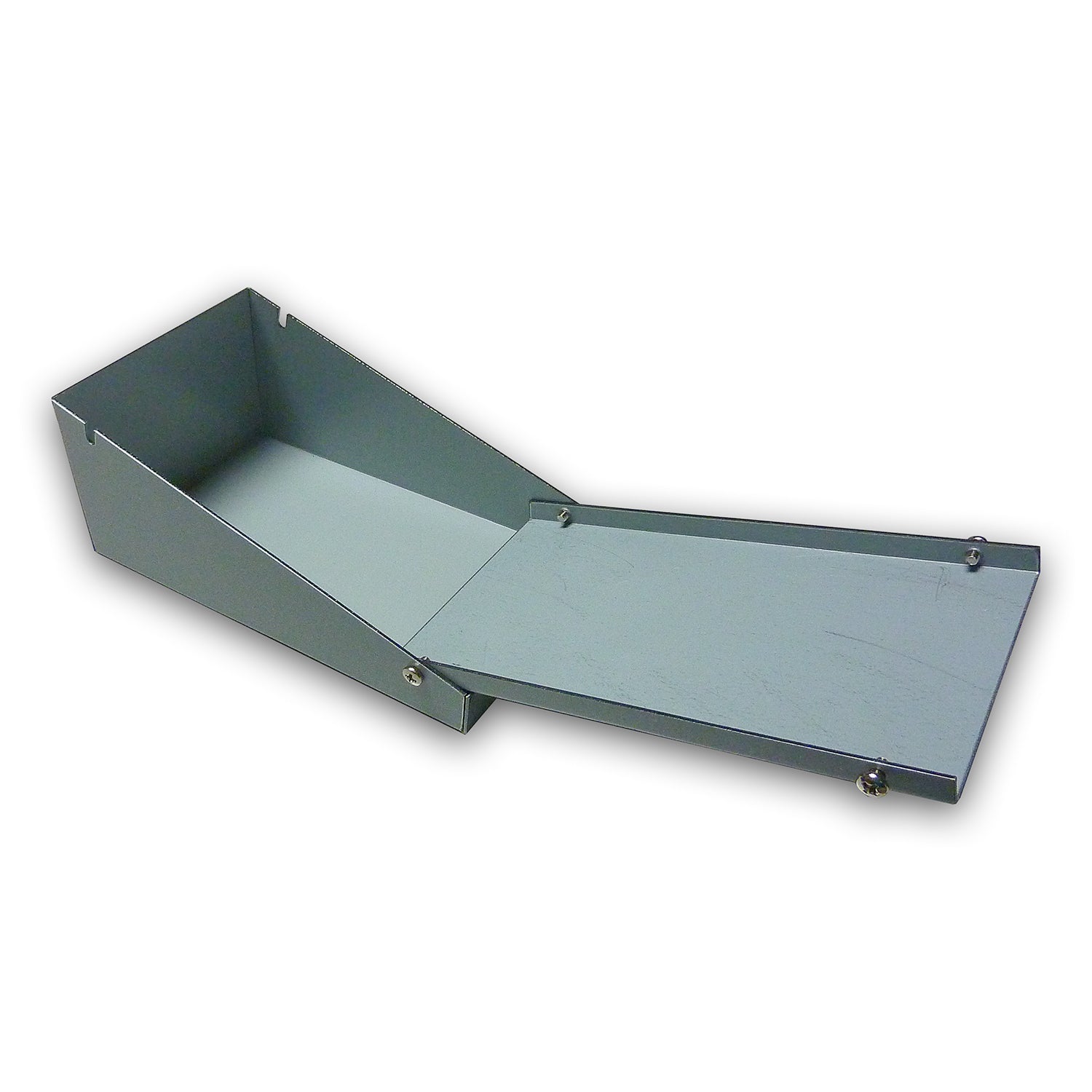

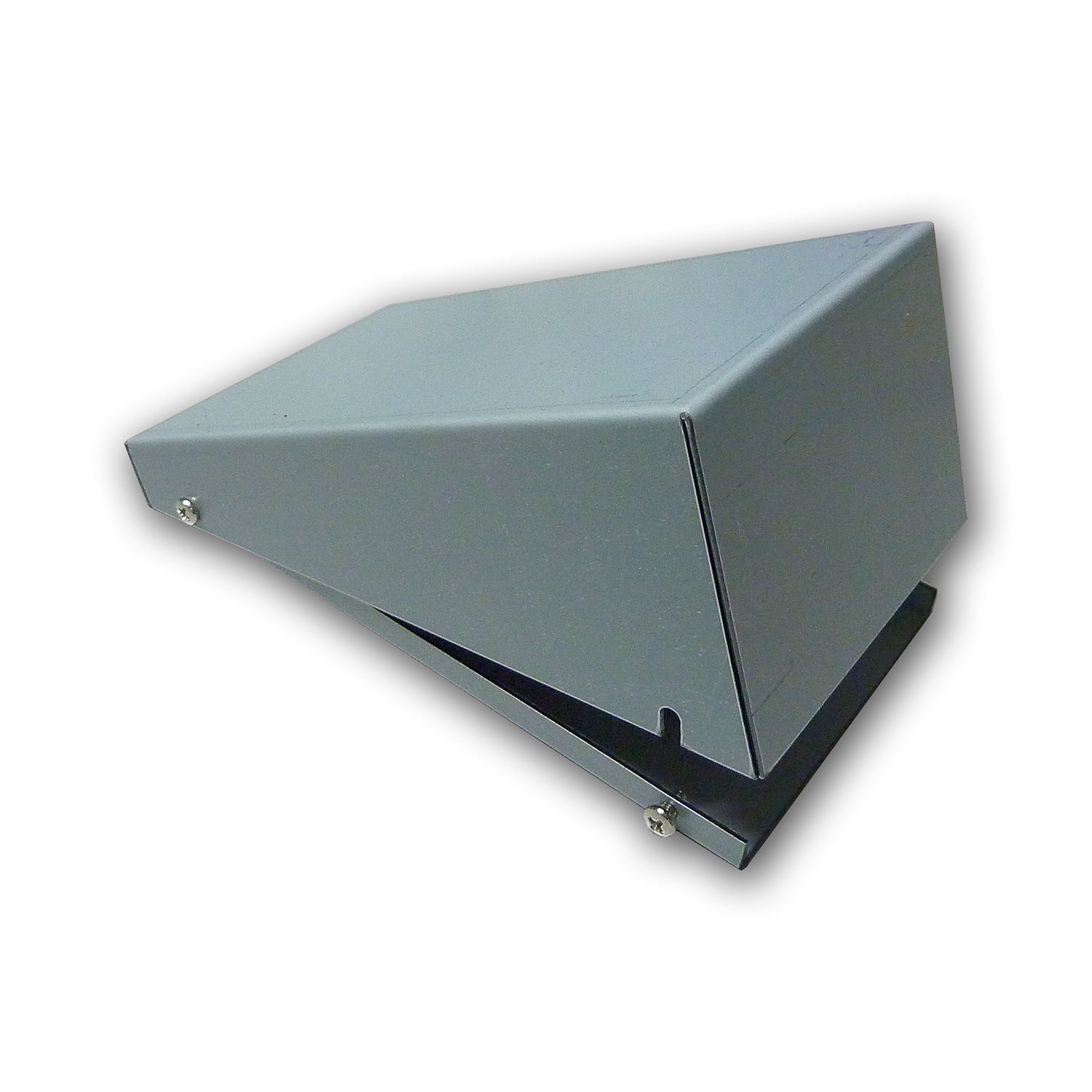

• Repetitive Assembly Engineering: Assembled cleanly with machine screws, allowing for repetitive assembly and disassembly. This layout makes bench servicing, internal circuit tweaks, and battery replacements incredibly easy.
• Clean CNC & Drilling Properties: The sheet metal top face allows for smooth, precise drilling or punching without fracturing—perfect for cleanly cutting holes for 3PDT stomp switches, control knobs, and 1/4" audio jacks.
• Flush Panel Sealing: Precision-formed base and face contours align flawlessly, yielding a professional look and stage-ready durability.

🛠️ Need Factory Pre-Drilling or Silk-Screening?

Planning a commercial production run for your pedal brand? We can save you massive assembly labor. We offer in-house factory CNC punching for your custom knob/jack layouts, specialized powder coating colors, and high-resolution laser engraving or silk-screen branding. Head to our Custom CNC & Laser Quotes page to upload your layout blueprints for a direct factory estimate.
